Bandpass filter CW665nm FWHM 20nm

Date: 2025-05-28 10:19:00     Hits: 12




BP665nm-FWHM20nm Optical filter

ParametersSPEC

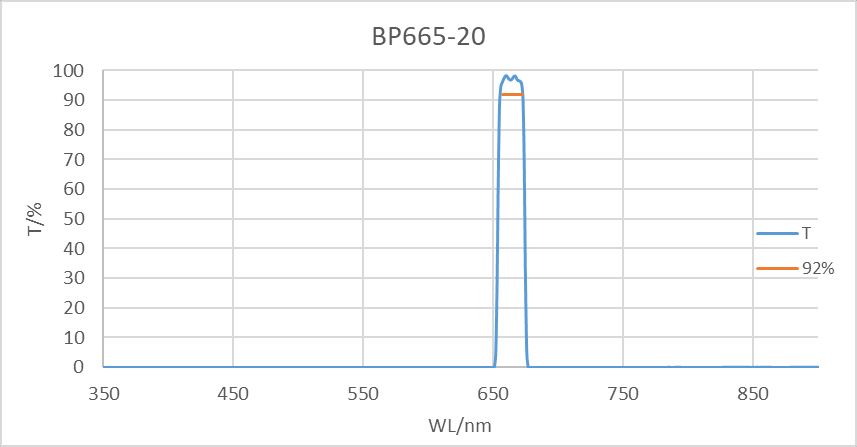

Transmission WL

TAvg>92%@657~673nm

CW

665±2nm

Bandwidth(nm)

20±2nm

Blocking Band 1

ODAvg>6@350~649nm

Blocking Band 2

ODAvg>6@682~850nm
AOI0 ± 2 degree
Cone Half-angle3.5 degree
