CIE XYZ Filter-RGB Filter

With its unique design principle and diverse preparation process, CIE filters have demonstrated irreplaceable value in many fields such as lighting, display, scientific research, and medical treatment.

Auxcera uses ion beam sputtering coating and magnetron sputtering coating technology to produce CIE filter products. At present, we can customize X, Y, and Z filters according to the customer's target curve.

Processing capability:

It has a unique wide spectrum monitoring capability, and can adjust the thickness of the film layer in real time according to the processing error during the coating process; it can effectively control the film layer error, so that after normalization, the error area between the spectrum and the target curve is less than 5% of the target curve area.

Lead Time:4 weeks

Price: (Price plus sales WeChat consultation)

Notes:

The filter curve is determined according to the customer's own target curve, and has a certain correlation with the customer's light source, algorithm, and final tolerance factors. Customers need to confirm their own target curve and judgment method.

Processing process:

*The customer provides the target curve and judgment basis, filter size requirements, thickness requirements (no requirements, default 1mm)

*Our company simulates the specification and filter spectrum data according to customer requirements

*Customer confirms the specification

*Our company processes and manufactures and arranges delivery

Example:

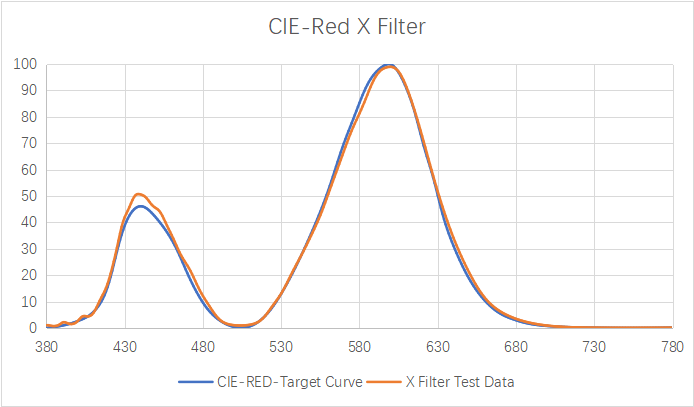

X Filter

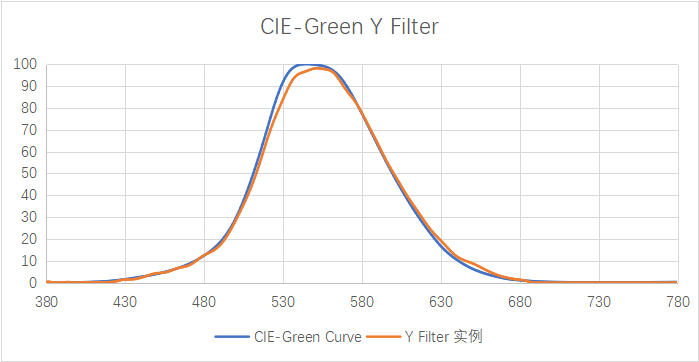

Y Filter

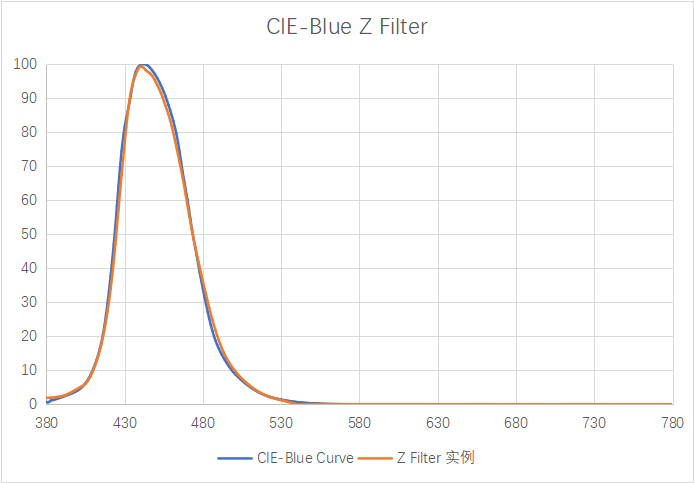

Z Filter
